產品特點：

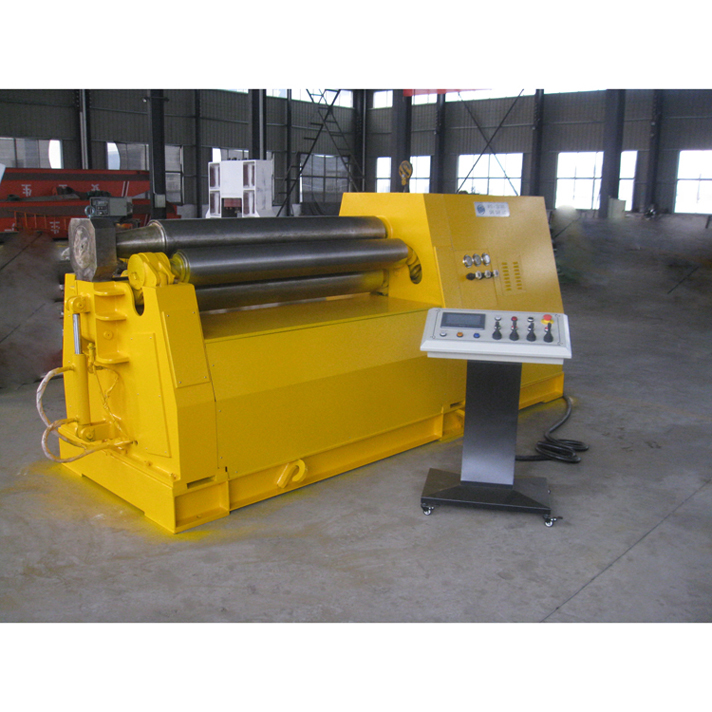

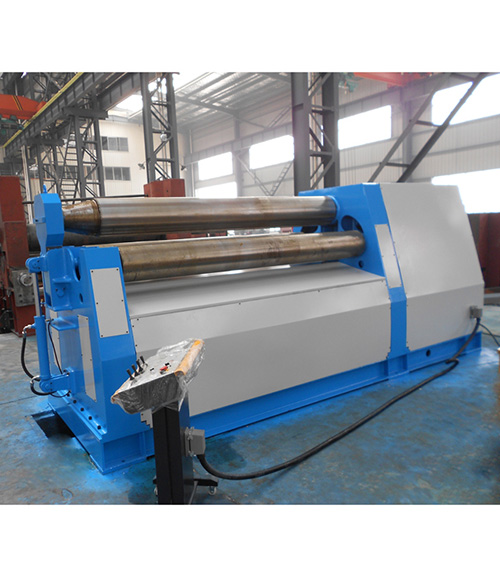

W12NC系列四輥卷板機，是引進德國先進技術生產，由PLC可編程數字化控制，全液壓驅動，實現卷圓自動化的四輥數控卷板機。該機結構先進，性能優越，精度好，效率高，操作方便，在世界同類產品中技術領先。
技術參數：
|
W12 Series Four roller plate bending machine |
|
Specification |
Max.rolling
sheet width
（mm） |
Max. rolling
Sheet thickness
（mm） |
Max.pre-bending thickness
(mm) |
Upper roller diameter
(mm) |
Under roller diameter
(mm) |
Side roller diameter
(mm) |
Rolling speed
(m) |
Motor power
(mm) |
|
W12-12*2000 |
12 |
2000 |
10 |
220 |
200 |
260 |
3-5 |
7.5 |
|
W12-16*2000 |
16 |
2000 |
12 |
260 |
240 |
200 |
3-5 |
11 |
|
W12-20*2000 |
20 |
2000 |
16 |
280 |
260 |
220 |
3-5 |
18.5 |
|
W12-25*2000 |
25 |
2000 |
20 |
310 |
290 |
250 |
3-5 |
22 |
|
W12-30*2000 |
30 |
2000 |
25 |
360 |
330 |
270 |
3-5 |
30 |
|
W12-12*2500 |
12 |
2500 |
10 |
250 |
230 |
280 |
3-5 |
11 |
|
W12-16*2500 |
16 |
2500 |
12 |
280 |
260 |
220 |
3-5 |
15 |
|
W12-20*2500 |
20 |
2500 |
16 |
330 |
310 |
250 |
3-5 |
22 |
|
W12-25*2500 |
25 |
2500 |
20 |
360 |
330 |
270 |
3-5 |
30 |
|
W12-30*2500 |
30 |
2500 |
25 |
390 |
360 |
290 |
3-5 |
37 |
|
W12-35*2500 |
35 |
2500 |
30 |
410 |
380 |
320 |
3-5 |
45 |
|
W12-40*2500 |
40 |
2500 |
35 |
470 |
440 |
380 |
3-5 |
45 |
|
W12-50*2500 |
50 |
2500 |
40 |
510 |
480 |
410 |
3-5 |
55 |
|
W12-60*2500 |
60 |
2500 |
50 |
560 |
530 |
450 |
3-5 |
75 |
|
W12-20*3000 |
20 |
3000 |
16 |
360 |
330 |
270 |
3-5 |
30 |
|
W12-25*3000 |
25 |
3000 |
20 |
390 |
360 |
290 |
3-5 |
37 |
|
W12-30*3000 |
30 |
3000 |
25 |
410 |
380 |
320 |
3-5 |
45 |
|
W12-35*3000 |
35 |
3000 |
30 |
470 |
440 |
380 |
3-5 |
45 |
|
W12-40*3000 |
40 |
3000 |
32 |
510 |
480 |
410 |
3-5 |
55 |
|
W12-50*3000 |
50 |
3000 |
40 |
560 |
530 |
450 |
3-5 |
66 |
|
W12-60*3000 |
60 |
3000 |
50 |
650 |
620 |
520 |
3-5 |
75 |
|
W12-70*3000 |
70 |
3000 |
60 |
700 |
670 |
550 |
3-5 |
90 |
|
Because in the continuous improvement of products, if there is difference between this date and technical data, should comply with the technical agreement parameters on both sides. No further notice! |
